Underground Armoured Copper Cable 4 core 240 mm2 120mm2

Armouring : Steel Wire

Price : 0.1-5

Certification : ISO,CE,IEC,TUV,KEMA

Insulated : XLPE

Model Number : U-1000 R2V/XV/RV

Cable Mark : Ink printing or Embossing

Delivery Time : 5-8 Days

Capacity : 2000km/month

Voltage Rating : 0.6/1kV

Supply Ability : 100KM/Week

Core : 4 core

Packaging Details : Wooden Drum

Conductor : Copper

Brand Name : Minfeng

Place of Origin : Hebei, China

MOQ : 100m

Payment Terms : L/C,T/T

Cable Length : 100m-5000m

Contact Now

Underground Armoured Copper Cable 4 core 240 mm² 120 mm²
Product Overview

These low voltage power cables are designed for underground electricity supply installations, suitable for indoor and outdoor use in cable ducts, power stations, and industrial plants where mechanical damage is not a concern.

Rated Voltage 0.6 kV, 1 kV
Size U-1000 R2V/XV/RV
Conductor Material Copper
Insulation Material XLPE
Working Temperature 90°C
Jacket PVC
Application Underground
Type Low Voltage
Place of Origin Hebei, China
Model Number U-1000 R2V/XV/RV
Brand Name OEM
Product Name Electric Cable 4*240 4*120
Certificate ISO9001/CCC CE
Standard IEC60502
Rated Voltage 0.6/1KV
Conductor Pure Copper
Core Multi-core
Color Black
Cable Application

These cables are used for electricity supply in low voltage installation systems. They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, and industrial plants where there is no risk of mechanical damage. The lead sheath provides enhanced resistance to aromatic hydrocarbons.

Cable Standards
  • IEC 60228 Conductors
  • IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV (Um=1.2kV) up to 35kV (Um=40.5kV) - Part 1: Cables for rated voltages of 1 kV (Um=1.2kV) and 3 kV (Um=3.6kV)
Cable Construction
  1. Conductor: Plain annealed copper, Class 1: solid conductor, or Class 2: stranded conductor
  2. Insulation: Cross-linked polyethylene XLPE
  3. Filler: Non-hygroscopic material
  4. Binder tape: Non-hygroscopic material
  5. Inner sheath: Polyvinyl chloride PVC
  6. Armored: Steel wire
  7. Outer sheath: Polyvinyl chloride PVC
Product Images

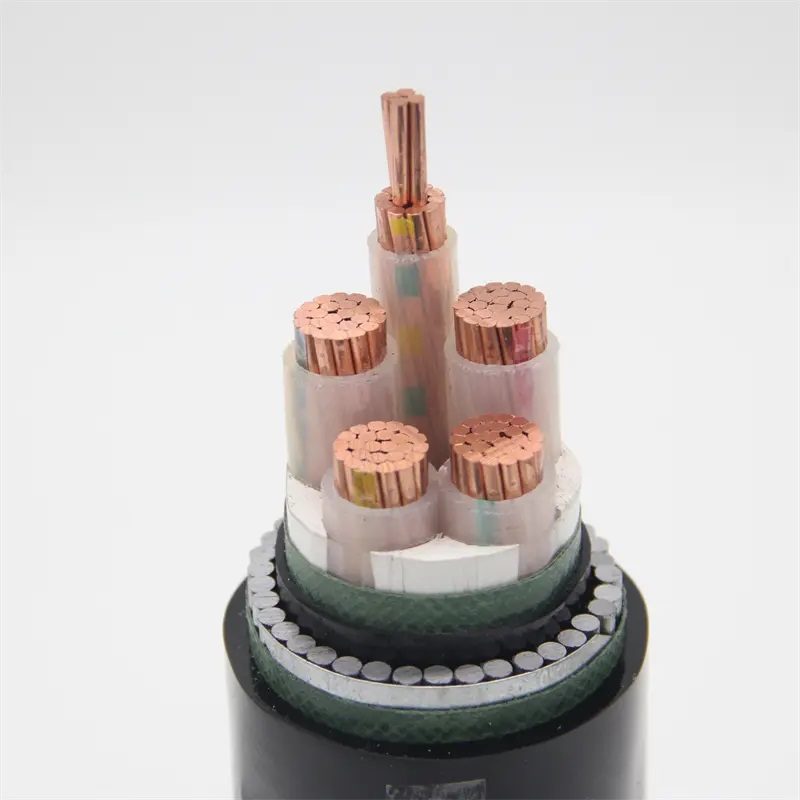

Underground Armoured Copper Cable 4 core 240 mm2 120mm2 Underground Armoured Copper Cable 4 core 240 mm2 120mm2
Cable Parameters

0.6/1kV-4 core copper conductor XLPE insulated PVC sheathed power cable specifications:

No. of cores and nominal cross section (mm²) Thickness of Insulation (mm) Thickness of Sheath (mm) Approx. overall Diameter (mm) Approx. weight (kg/km) Max. DC resistance of conductor(20℃) (Ω/km) Current carrying capacity In Air(A) Current carrying capacity In Ground(A)
4X1.50.71.812.616012.12130
4X2.50.71.813.62107.412839
4X40.71.814.82804.613751
4X60.71.816.03803.084764
4X100.71.818.65301.836586
4X160.71.821.08001.1584110
4X250.91.824.912400.727110140
4X350.91.828.316000.524135170
4X501.01.828.420000.387170205
4X701.12.033.128000.268215250
4X951.12.137.140000.193265300
4X1201.22.240.850000.153310345
4X1501.42.445.261000.124350385
4X1851.62.652.176000.0991405435
4X2401.72.857.895000.0754480500
4X3001.83.063.5120000.0601555565
4X4002.03.370.9160000.0470640640
Packaging & Shipping
Underground Armoured Copper Cable 4 core 240 mm2 120mm2
Packing
  • Steel wooden drum (fumigation)
  • Cable length in each drum: 1000m/2000m or as per actual cable length requirements
  • Drum size: As per cable length and container size

In order to quote accurate pricing, please specify your required cable length quantity. Larger quantities receive additional discount benefits.

Shipping Port

Tianjin, Qingdao, or other ports as per your requirements.

Sea Freight

FOB/C&F/CIF quotations are all available. For some countries such as African countries and Middle Eastern countries, our sea freight quotation is often more competitive than rates obtained from local shipping agencies.
