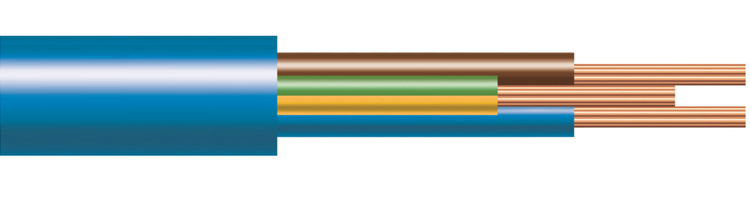

318-AG Arctic Grade PVC Cable with Plain Copper Conductor for -40 Degrees and 500V Applications

  • 1
  • 2

Model : 318-AG

MOQ : 100m

Packaging Details : Wooden Drum

Free Sample : Available

Payment Terms : L/C,T/T

Cable Standard : BS6004, EN 60228 Flame Retardant according to IEC/EN 60332-1-2

Model Number : 318-AG

Place of Origin : Hebei, China

Minimum Order : Negotiable

Certification : ISO,CE,IEC,TUV,KEMA

Sample : Yes

Brand Name : Minfeng

Price : 0.1-5

Conductor : Plain Copper

Delivery Time : 5-8 Days

Supply Ability : 100KM/Week

Contact Now

318-AG Arctic Grade Cable -40°C PVC Cable Plain Copper Conductor PVC Insulation 500V
318-AG Arctic Grade PVC Cable with Plain Copper Conductor for -40 Degrees and 500V Applications
Product Overview

Arctic grade cables, such as the 318-AG series manufactured to BS 6004 standards, are designed for indoor or outdoor applications where flexibility in severe temperatures is crucial. These cables remain pliable even in extreme cold, down to -40 degrees Celsius. Known for their high-grade PVC construction, they are suitable for bespoke extension leads, powering portable tools, or temporary traffic lights.

Technical Specifications
Type Insulated
Rated Voltage 500V
Conductor Material Plain Copper
Insulation Material PVC
Working Temperature -40°C to 70°C
Conductor Type Flexible
Application Industrial, Building
Shape Round
Model Number 318-AG
Brand Name Minfeng
Standard Class 5
Place of Origin Hebei, China
Construction Details
Conductor Plain Copper
Stranding Class 5
Insulation PVC
Outersheath PVC
Outersheath Colour Blue, Orange, Yellow
Core Identification 2 Core: Blue, Brown
3 Core: Blue, Brown, Green/Yellow
Minimum Bending Radius 3 x Overall Bending Radius
Operating Temperature 70°C
Standards BS6004, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
Product Specifications
Cores Nominal Cross Sectional Area (mm²) Approx Overall Diameter (mm) Weight (kg/km)
2 1.5 7.5 80
3 0.75 6.7 60
3 1 7 72
3 1.5 8.2 98
3 2.5 10.1 155
3 4 11.4 215
3 6 11.1 -
4 1.5 9 145
4 2.5 10.7 195
4 6 14.5 390
5 1.5 10.2 156
