DHZ1 POWER Cable Medium Voltage Cable with 6/10 KV EPR Insulation and Copper/Aluminum Conductor

Name: DHZ1 POWER Cable Medium Voltage Cable with 610 KV EPR Insulation and CopperAluminum Conductor
Brand: Minfeng
Price: 0.1 USD

Wholesale DHZ1 POWER Cable Medium Voltage Cable with 6/10 KV EPR Insulation and Copper/Aluminum Conductor from china suppliers

Product name : DHZ1 POWER Cable

Main Market : Asia,Africa

Manufacturer : Minfeng cable

Supply Ability : 100KM/Week

Application : Power distribution and transmission

Certification : ISO,CE,IEC,TUV,KEMA

MOQ : 100m

Insulation : EPR

Delivery Time : 5-8 Days

Payment Terms : L/C,T/T

Origin : Hebei, China

Conductor : Copper/Aluminum

Model Number : DHZ1 POWER Cable

Place of Origin : China

Packing Style : Steel/ Wooden Drum

Price : 0.1-5

Brand Name : Minfeng

Contact Now

DHZ1 POWER Cable 6/10 KV 8.7/15 KV 12/20 KV 15/25 KV 18/30 KV ENERGIE Copper Aluminium CONDUCTOR

Product Overview

Medium voltage power distribution cable designed for installations in air, ducts, and direct buried applications. Features high resistance to tear forces and abrasion with easy sliding installation.

Technical Specifications

Rated Voltage	6/10 KV 8.7/15 KV 12/20 KV 15/25 KV 18/30 KV
Size	16-1000mm²
Conductor Material	Aluminum/Copper
Insulation Material	EPR (Ethylene-Propylene Rubber)
Working Temperature	90°C
Jacket	Polyolefine (Z1)
Application	Industrial
Type	Medium Voltage
Standard	IEC-60502.2
Model Number	DHZ1
Brand Name	Minfeng

Construction Details

Conductor: Stranded annealed copper class 2 / Aluminium class 2
Triple Extrusion: Three extruded layers (both semiconducting and insulation) extruded simultaneously through triple head
Conductor Screen: Extruded semiconductor
Insulation: Ethylene-Propylene Rubber (EPR)
Core Screen: Extruded semiconductor
Screen: Copper wires
Sheath: Polyolefine (Z1)

Manufacturing Process

Tube under controlled pressure of inner gas (N2) to prevent void formation. The temperature in the tube is carefully controlled to ensure correct temperature at level core. LSF Cable.

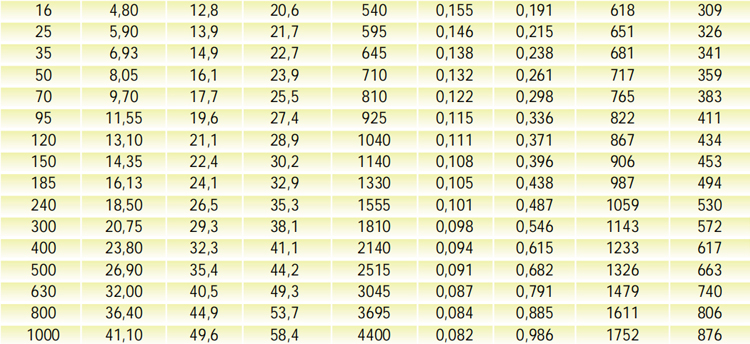

Product Images

DHZ1 POWER Cable Medium Voltage Cable with 6/10 KV EPR Insulation and Copper/Aluminum Conductor

DHZ1 POWER Cable Medium Voltage Cable with 6/10 KV EPR Insulation and Copper/Aluminum Conductor Images
