9842 - 600V LSZH Alternative Cable with Tinned Copper Conductor and PE Insulation for Industrial Use

Name: 9842 600V LSZH Alternative Cable with Tinned Copper Conductor and PE Insulation for Industrial Use
Brand: Minfeng
Price: 0.1 USD

Wholesale 9842 - 600V LSZH Alternative Cable with Tinned Copper Conductor and PE Insulation for Industrial Use from china suppliers

Corporation : Minfeng group

Product name : LSZH Alternative Cable

Certification : ISO,CE,IEC,TUV,KEMA

Outer Sheath Color : Grey or as per request

Price : 0.1-5

Operating Temp : -20°C to +80°C

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Brand Name : Minfeng

MOQ : 100m

Cable Type : 9842 - 600V

Delivery Time : 5-8 Days

Voltage : 600V

Model Number : 9842 - 600V

Place of Origin : China

Contact Now

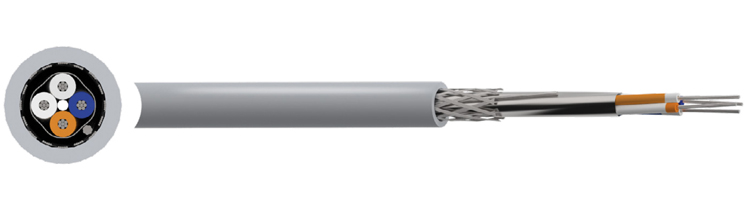

9842 - 600V LSZH Alternative Cable Tinned Copper Conductor PE Insulation

Product Overview

The 9842 - 600V LSZH Alternative Cable is a 24 AWG low capacitance cable with high-level screening designed for interference-free, high-speed data transmission, particularly suitable for RS485 applications in industrial environments.

9842 - 600V LSZH Alternative Cable with Tinned Copper Conductor and PE Insulation for Industrial Use

Key Specifications

Rated Voltage 600V

Size AWG24(7)

Conductor Material Copper

Insulation Material PE

Working Temperature -20°C to +80°C

Application Industrial

Type Low Voltage

Place of Origin Hebei, China

Model Number 9842 - 600V

Brand Name Minfeng

Standard IEC 17025

Product Characteristics

Voltage Rating: 600V
Temperature Rating: Fixed: -20°C to +80°C

Construction Details

Conductor: Class 2 stranded tinned copper conductor
Insulation: PE (Polyethylene)
Screen: Al/PET (Aluminium polyester foil)
Drain Wire: Stranded Tinned copper
Braid: TCWB (Tinned Copper Wire Braid)
Sheath: LSZH (Low Smoke Zero Halogen)

Technical Specifications

Product Number	Conductor Size (AWG)	Stranding	(mm²)	Approx. Weight (lbs/m1)	(kg/km)
ZLXE-18-600V	18	19/30	.96	11	16.4
ZLXE-16-600V	16	19/29	1.22	13	19.3
ZLXE-14-600V	14	19/27	1.94	18	26.8
ZLXE-12-600V	12	19/25	3.08	27	40.5
ZLXE-10-600V	10	27/24	5.53	44	65.5
ZLXE-8-600V	8	37/24	7.57	65	96.7
ZLXE-6-600V	6	61/24	12.5	102	151.8
ZLXE-5-600V	5	91/24	19	149	223.5
ZLXE-4-600V	4	105/24	21	171	256.5
ZLXE-3-600V	3	125/24	26	195	290.2
ZLXE-2-600V	2	150/24	31	233	346.7
ZLXE-1-600V	1	225/24	46	343	510.4
ZLXE-1/0-600V	1/0	275/24	56	410	610.1
ZLXE-2/0-600V	2/0	325/24	66	481	715.8
ZLXE-3/0-600V	3/0	450/24	92	653	971.7
ZLXE-4/0-600V	4/0	550/24	112	790	1175.6
ZLXE-262-600V	262MCM	650/24	133	931	1385.4
ZLXE-313-600V	313MCM	775/24	159	1099	1635.4
ZLXE-373-600V	373MCM	925/24	189	1300	1934.5
ZLXE-444-600V	444MCM	1100/24	225	1551	2308.0
ZLXE-535-600V	535MCM	1325/24	271	1934	2878.0
ZLXE-646-600V	646MCM	1600/24	327	2250	3337.5
