0.6/1kV Rated Voltage Buflex M PUR Rubber Cable with Flame Retardant Polyurethane Sheath and Class 5 Flexible Copper Conductor

Product Categories
Minfeng Cable Group Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

0.6/1kV Rated Voltage Buflex M PUR Rubber Cable with Flame Retardant Polyurethane Sheath and Class 5 Flexible Copper Conductor

Model Number : BUFLEX M/Buflex X Prem

Sheath material : Special polyurethane

Brand Name : Minfeng

Supply Ability : 100KM/Week

Temperature Rating : 90°C (maximum operating temperature)

Delivery Time : 5-8 Days

Insulation Material : crosslinked polyethylene

Place of Origin : Hebei, China

Trademark : Minfeng Cable Group

Certification : ISO,CE,IEC,TUV,KEMA

Payment Terms : L/C,T/T

Cable Length : 1m-5000m

Product name : Buflex M PUR Rubber Cable

MOQ : 100m

Price : 0.1-5

Packaging Details : Wooden Drum

Contact Now

0.6/1(1.2)kV Buflex M Buflex X Prem PUR Rubber Cable with 2 Pilot Cores Flexible Bare Copper
Product Overview

High-performance industrial rubber cable featuring flexible bare copper conductors, cross-linked polyethylene insulation, and flame-retardant polyurethane sheath. Designed for demanding industrial applications with excellent oil and UV resistance.

Technical Specifications
Rated Voltage 0.6/1kV
Size 3 x 50 + 3 x 10 + 2 x 1.5mm²
Conductor Material Class 5 Flexible Copper
Insulation Material Crosslinked Polyethylene (XLPE)
Working Temperature 90°C
Jacket Material Special Polyurethane
Application Industrial
Standard Class 5 (IEC 60228)
Color Yellow

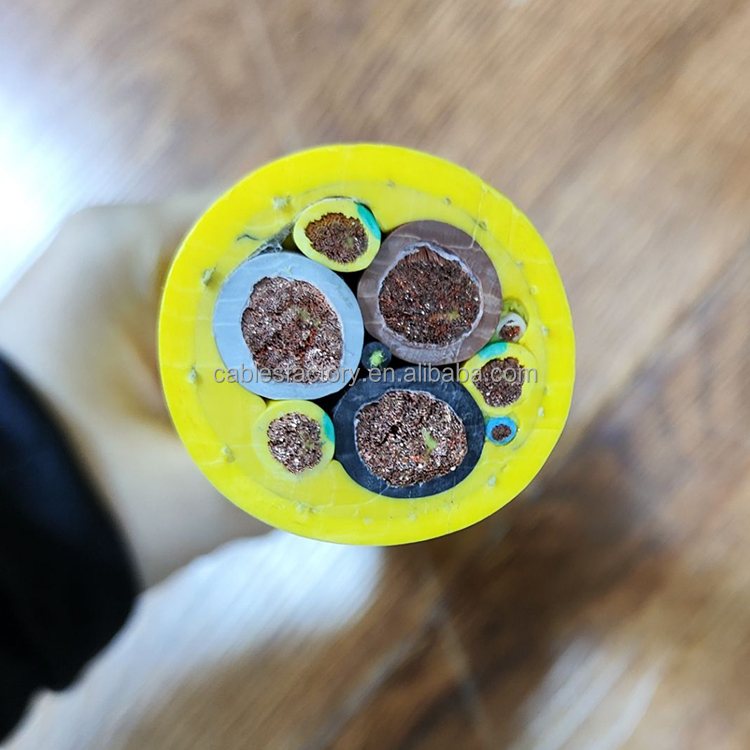

Detailed Construction

Conductor: Flexible bare copper Class 5 (IEC 60228)
Insulation: XLPE (cross linked polyethylene)
Inner Sheath: Polyurethane thermoplastic compound
Outer Sheath: Flame retardant polyurethane (oil and UV resistant)

Cable Specifications
Cable (mm) Outer Diam. (mm) Weight (kg/km) Minimum Bending Radius (mm)
3x25+3G6+2x1x1 21.5 1200 144 / 192
3x35+3G6+2x1x1.5 25.0 1600 168 / 224
3x50+3G10+2x1x1.5 29.0 2100 192 / 256
3x70+3G16+2x1x1.5 34.0 3000 222 / 296
3x95+3G16+2x1x1.5 39.0 3900 252 / 336
3x120+3G25+2x1x1.5 42.0 4900 279 / 372
3x150+3G25+2x1x1.5 48.5 6000 312 / 416
3x185+3G35+2x1x1.5 53.5 7400 336 / 448
3x240+3G50+2x1x1.5 61.5 9600 387 / 516
Product Images
0.6/1kV Rated Voltage Buflex M PUR Rubber Cable with Flame Retardant Polyurethane Sheath and Class 5 Flexible Copper Conductor 0.6/1kV Rated Voltage Buflex M PUR Rubber Cable with Flame Retardant Polyurethane Sheath and Class 5 Flexible Copper Conductor 0.6/1kV Rated Voltage Buflex M PUR Rubber Cable with Flame Retardant Polyurethane Sheath and Class 5 Flexible Copper Conductor 0.6/1kV Rated Voltage Buflex M PUR Rubber Cable with Flame Retardant Polyurethane Sheath and Class 5 Flexible Copper Conductor 0.6/1kV Rated Voltage Buflex M PUR Rubber Cable with Flame Retardant Polyurethane Sheath and Class 5 Flexible Copper Conductor
