Low Voltage Screened Flat Cable with Copper Conductor and Rubber Insulation for Festoon Application 0.6/1kV

Name: Low Voltage Screened Flat Cable with Copper Conductor and Rubber Insulation for Festoon Application 061kV
Brand: Minfeng
Price: 0.1 USD

Wholesale Low Voltage Screened Flat Cable with Copper Conductor and Rubber Insulation for Festoon Application 0.6/1kV from china suppliers

Certification : ISO,CE,IEC,TUV,KEMA

Outer Sheath : Polychloroprene

Conductor : Class 5 Flexible Copper

Temperature Range : -20°C to +55°C

Model Number : rubber cable

Sample : Available

Place of Origin : Hebei, China

Standards Compliance : Based on DIN VDE 0250-809

Insulation : Rubber

Brand Name : Minfeng

Price : 0.1-5

Delivery Time : 10 Days

MOQ : 100

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Range Of Application : for Festoon Application

Origin : Hebei, China

Contact Now

Low Voltage Screened Flat Cables for Festoon Application

Product Overview

Flexible power and control cables designed for hoisting gears, transportation systems, machine tools, and applications requiring medium mechanical stresses with severe bending in one plane only. Suitable for dry, damp, wet areas and outdoor use with resistance against oils, fats, and chemical influences.

Rated Voltage: 0.6/1kV

Size Range: 16-240mm²

Conductor Material: Copper

Insulation Material: Rubber

Working Temperature: 90°C

Jacket: Polychloroprene

Application: Industrial

Model Number: M(StD)HOEU

Standard: DIN VDE 0250-809

Low Voltage Screened Flat Cable with Copper Conductor and Rubber Insulation for Festoon Application 0.6/1kV

Design Features

Conductor: Copper bare, up to 25 mm²: finest wire class 6 according to IEC 60228 / DIN EN 60228; 35 mm² and up: fine wire class 5 according to IEC 60228 / DIN EN 60228
Conductor wrapping: Paper tape or PETP-film
Insulation: Rubber, type pf compound 3GI3 according to DIN VDE 0207-20
Core identification: Up to 5 cores: colored in accordance with DIN VDE 0293-308; From 6 cores: black with white numbers
Individual screen: ALU/PETP foil, overlapped. Spinning of tinned copper wires, covering > 85%. Wrapping with PETP-film

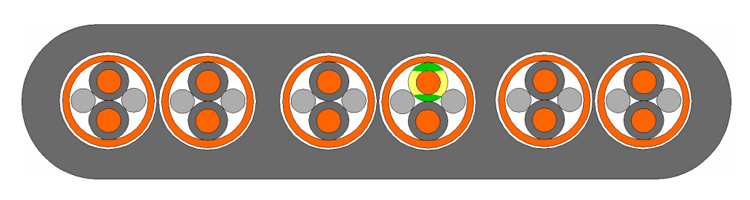

Core arrangement: Cores arranged in parallel; Pair twisting: 2 Cores and 2 fillers twisted with varying direction of lay and short length of lay, wrapping with PETP-film, pairs parallel arranged
Outer sheath: Polychloroprene, type of compound 5GM3 according to DIN VDE 0207-21. Colour: black

Electrical Parameters

Rated voltage: 0.6/1 kV (600/1000V)
Max. permissible operating voltage AC: 0.7/1.2 kV
Max. permissible operating voltage DC: 0.9/1.8 kV
AC Test Voltage: 2.5 kV (5 Min.)
Current Carrying Capacity: Acc. to VDE 0298-4

Thermal Parameters

Max. permissible temperature at conductor: 90°C
Max. short circuit temperature of the conductor: 250°C
Ambient temperature for fixed installation: min -40°C; max +80°C
Ambient temperature in fully flexible operation: min -30°C; max +80°C

Mechanical Parameters

Max. tensile load on the conductor: 15 N/mm²
Torsional stress: Not allowed
Min. bending radius: Acc. to DIN VDE 0298 part 3
Travel speed in festoon system: Up to 180m/min (consult manufacturer for speeds beyond)

Product Specifications

Number of cores x cross section	Conductor diameter max. mm	Min.Height (for flat cable) mm	Max.Height (for flat cable) mm	Min.Width (for flat cable) mm	Max.Width (for flat cable) mm	Bending radius free moving min. mm	Weight (ca.) kg/km	Permissible tensile force max. N	Conductor resistance at 20°C max.
4x1,5	1.5	7	8	20.1	21.5	24	290	90	13.3
4x2,5	1.9	7.6	8.7	22.7	24.1	35	370	150	7.98
4x4	2.5	8.5	9.5	25.6	27.6	38	500	240	4.95
4x6	3.2	8.9	10.5	28.1	30.1	42	610	360	3.3
4x10	4.1	11.1	12.1	34.7	36.7	61	910	600	1.91
4x16	5.1	12.3	13.7	38.9	41.5	69	1320	960	1.21
4x25	6.4	12.5	15.5	43	47	78	1720	1500	0.78
4x35	7.7	14.6	17	49.8	53.2	85	2330	2100	0.55
4x50	9.6	17.1	19.7	58	61.6	99	3110	3000	0.39
4x70	11.1	22	24	73	77	120	4670	4200	0.27
4x95	13.1	22.7	25.3	76.3	81.9	127	5510	5700	0.21
5x1,5	1.5	7	8	23.8	25.8	24	350	110	13.3
8x1,5	1.5	7	8	36.2	38.6	24	550	180	13.3
12x1,5	1.5	7	8	52.7	57.1	24	810	270	13.3
4x4x1,5	1.5	10	13	36.6	42.6	65	900	360	13.3
6x2,5	1.9	7.6	8.7	31.5	33.5	35	530	220	7.98
12x2,5	1.9	7.6	8.7	60	64	35	1050	450	7.98
4x(2x1)	1.3	10.2	11.8	30	33.5	47	590	120	19.5
7x(2x1)	1.3	10.9	12.5	55.3	59	63	1060	210	19.5
12x(2x1)	1.3	13.7	17	65.5	71	85	1500	360	19.5
