TGK-SILIKON High Temperature Silicone Wire with Tinned Copper Conductor and 1.1KV 3.7KV 6.6KV Voltage Rating

Name: TGKSILIKON High Temperature Silicone Wire with Tinned Copper Conductor and 11KV 37KV 66KV Voltage Rating
Brand: Minfeng
Price: 0.1 USD

Conductor : Tinned Copper

Delivery Time : 5-8 Days

Model : TGK-SILIKON

Standard : IEC 60228

Certification : ISO,CE,IEC,TUV,KEMA

Price : 0.1-5

MOQ : 100m

Voltage rating : 1.1KV 3.7KV 6.6KV

Brand Name : Minfeng

Insulation : Silicone rubber

Transport Package : Wooden Steel Drum

Packaging Details : Wooden Drum

Payment Terms : L/C,T/T

Model Number : TGK-SILIKON

Place of Origin : Hebei, China

Supply Ability : 100KM/Week

Contact Now

1.1 KV 3.7KV 6.6 KV TGK-SILIKON Tinned Copper Silicone Coated Synthetic Fibre Braid Cable High Temperature Silicone Wire

Product Overview

TGK-SILIKON High Temperature Silicone Wire with Tinned Copper Conductor and 1.1KV 3.7KV 6.6KV Voltage Rating

Type	Insulated
Rated Voltage	1.1KV/3.7KV/6.6KV
Conductor Material	Tinned Copper
Insulation Material	Silicone Rubber
Working Temperature	-60°C - +180°C
Conductor Type	Stranded
Application	Industrial, Building
Shape	Round
Place of Origin	Hebei, China
Model Number	TGK-SILIKON
Brand Name	Minfeng
Product Name	GK-SILIKON MV High Temperature Cable
Standard	IEC 60228

Applications

Flexible connecting cable for increased ambient temperatures, for transformers, generators and motors. Suitable for installation indoors and in cable ducts for power stations, industry and distribution networks. The halogen-free sheath protection is resistant against transformer oil and fuel oil. Also suited for wiring of rotating machines: motors, alternators, generators, and static motors: transformers, inductors, inverters, choppers for shipbuilding and railway construction, power supply.

Cable Design

Construction: Tinned copper, stranded, class 5
Separator: semi-conducting tape
Insulation: silicone rubber
Outer Sheath: coated synthetic reinforcing braid
UL approval, 4.2 kV: style 3662
Other working voltages: 1.1 kV, 6.6 kV, 13.8 kV

TGK-SILIKON 1.1KV

TGK-SILIKON 3.7KV

TGK-SILIKON 6.6KV

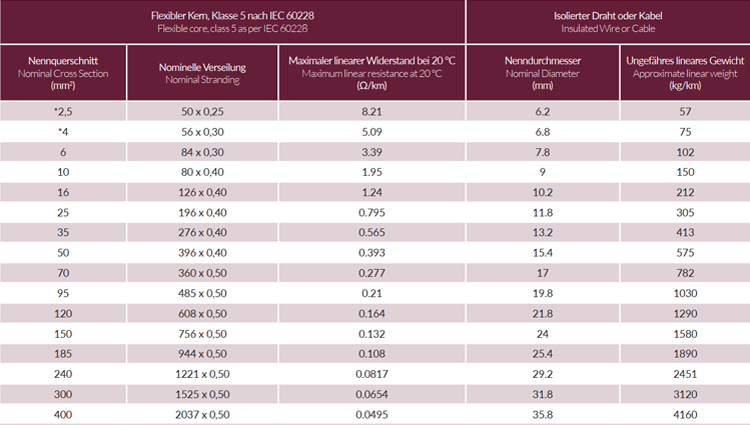

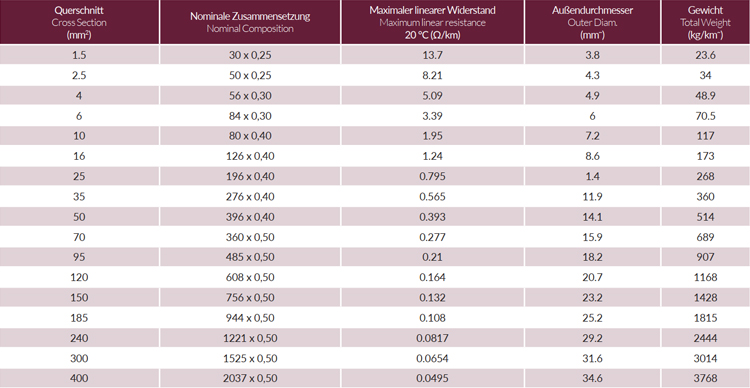

TGK-SILIKON High Temperature Silicone Wire with Tinned Copper Conductor and 1.1KV 3.7KV 6.6KV Voltage Rating Images
