Nylon Electrical Cable Wire 8mm 10mm 25mm 30mm Flame Retardant Heat Resistant

Brand Name : Minfeng

Model Number : BV cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Material : PVC Copper

Conductormaterial : Copper

Flame Retardant : As per customer request

Application : Building wiring, electrical installations

Meterial : Solid/Stranded Copper

Jacket Material : PVC

Operating Temp : 70 degree

Cable Spec : 1.5sqmm,2.5sqmm,4sqmm ,6sqmm to 400sqmm

Contact Now

Nylon Cable De Cobre THHN Electrical Wire 8mm 10mm 25mm 30mm
Product Overview
Nylon Electrical Cable Wire 8mm 10mm 25mm 30mm Flame Retardant Heat Resistant Nylon Electrical Cable Wire 8mm 10mm 25mm 30mm Flame Retardant Heat Resistant

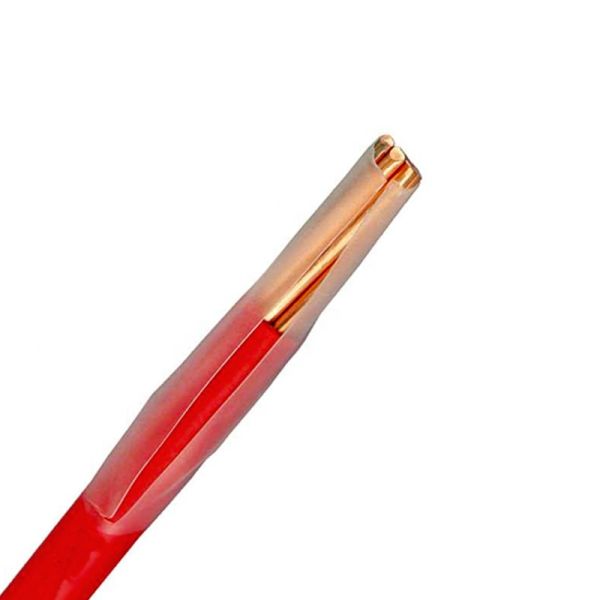

Construction Details
1. Conductor
  • Material: Copper or Aluminum
  • Specification: Stranded uncoated copper conductors per ASTM-B3, ASTM-B787, and ASTM-B8
  • Conductor Type: Stranded conductor or solid conductor
  • Function: The conductive part that transports electrical energy, serving as the main component of the wire and cable
2. Insulation
  • Material: Color-coded Polyvinyl Chloride (PVC)
  • Properties: Heat and moisture resistant, flame-retardant compound per UL 1063 and UL 83
  • Function: Electrically isolates the conductor from the ground and different phase conductors to ensure safe energy transmission
3. Shield
Wires and cables of 15KV and above generally have conductor shields and insulation shields.
4. Outer Sheath / Jacket
Nylon, THHN tough, polyamide, Nylon outer covering per UL 1063 and UL 83. Slick Nylon outer jacket for easy pulling.
5. Color Code
Red, orange, yellow, yellow-green, blue, purple, gray, white or as per customer requirements
6. Protective Layer
Protects wires and cables from foreign impurities, moisture, and prevents external power from directly damaging the power cables.
Technical Specifications
7. Working Temperature
  • Rated drying temperature: 90°C
  • Nominal wet temperature: 75°C, rated THWN
  • Most THHN building wire features THHN/THWN double rating for wet and dry conditions
  • When used as Type THHN: Suitable for oil or cooling liquid temperature not exceeding 90°C (dry) or 75°C (wet)
  • When used as MTW type: 90°C in dry places, 60°C in moist places or places exposed to oil or coolant
8. Building Applications
THHN Wire represents high heat thermoplastic nylon coating. Suitable for machine control circuit wiring, new configurations, rewiring, or 600 volts applied. Approved for general use as defined by the National Electrical Code (NEC).
THHN Wire Features
Nylon Electrical Cable Wire 8mm 10mm 25mm 30mm Flame Retardant Heat Resistant
  • Superior safety performance including anti-termite, anti-rat bite properties with heat resistance up to 200°C
  • Environmentally friendly with no harm to surroundings - ideal for home decoration equipment power supply and lighting
  • Lightweight with smooth appearance and inherent lubricity for easy installation through pipes without scratching
  • Excellent mechanical strength, wear resistance, cold resistance, surface hardness, and chemical/oil/gasoline resistance
Nylon Electrical Cable Wire 8mm 10mm 25mm 30mm Flame Retardant Heat Resistant Nylon Electrical Cable Wire 8mm 10mm 25mm 30mm Flame Retardant Heat Resistant

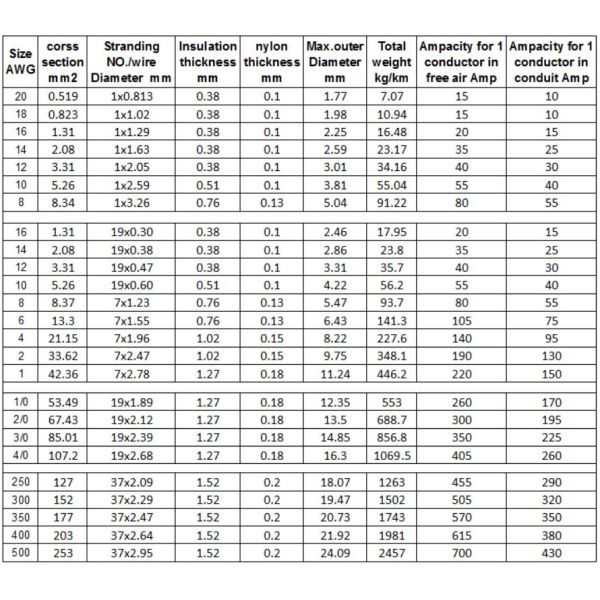

Wire Type Specifications
Type Properties
TW Flame retardant and moisture proof
THHN Flame-retardant and heat-resistant thermoplastic insulated nylon sheath
THW Flame retardant, moisture-proof and heat-resistant
THW-2 Flame retardant, moisture-proof and heat-resistant
THHW Flame retardant heat-resistant thermoplastic insulation
THWN Flame-retardant and heat-resistant thermoplastic insulated nylon sheath
THWN-2 Flame-retardant and heat-resistant thermoplastic insulated nylon sheath
