3.6/6kV Medium Voltage Flat Reeling Cable with Fibre-optics Copper Conductor 35-95mm2 for Industrial Applications

  • 1
  • 2

Cable Size Range : 35-95mm2

Temperature : 80℃

MOQ : 100

Delivery Time : 10 Days

Conductor Material : Finely stranded copper, tinned, class 5

Brand Name : Minfeng

Core : 4

Model Number : (N)TSFLCGEWOEU

Place of Origin : Hebei, China

Sample : Available

Certification : ISO,CE,IEC,TUV,KEMA

Type : LOW VOLTAGE

Price : 0.1-5

Supply Ability : 100KM/Week

Payment Terms : L/C,T/T

Contact Now

(FL)-LWL (N)TSFLCGEWOEU 3.6/6kv Medium Voltage Flat Reeling Cable with Fibre-optics Copper Conductor
Product Overview

Flexible medium voltage reeling cable designed for high mechanical stresses including dynamic tensile loads, multiple changes of direction within one plane, and running over rollers. Primarily used for mobile equipment such as fast-moving container cranes, cranes, large mobile equipment, and excavators.

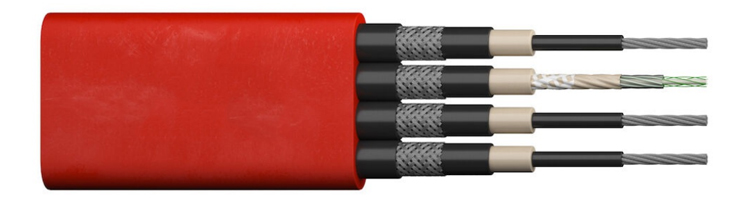

3.6/6kV Medium Voltage Flat Reeling Cable with Fibre-optics Copper Conductor 35-95mm2 for Industrial Applications
Key Specifications
Rated Voltage 3.6/6kV
Size 35-95mm²
Conductor Material Copper
Insulation Material EPR
Working Temperature 80℃
Jacket PCP
Application Industrial
Type Low Voltage
Place of Origin Hebei, China
Model Number (N)TSFLCGEWOEU
Brand Name Minfeng
Standard DIN VDE 0298-4
Design Features
  • Conductor: Electrolytic copper tinned, finely stranded, class F (DIN VDE 0295)
  • Insulation: PROTOLON Special compound based on high-quality EPR with improved mechanical and electrical characteristics
  • Electrical field control: Inner semiconductive layer of EPR, outer semiconductive layer of modified EPR, removable in warm condition
  • Core identification: Natural coloured insulation with black semiconductive layer
  • Optical Fiber: Available with 6, 12, 18 or 24 fibres in various configurations
  • Sheath system: PROTOFIRM Special compound based on CR, quality at least 5GM5, red colour
Installation Notes

Preparation of fibre-optics requires special skills and elaborate tools. It is recommended that this work be entrusted to our customer service (Factory assembly). Please provide connection dimensions when ordering.

Electrical Parameters

Rated voltage: 3.6/6 kV | Max. permissible operating voltage AC: 4.2/7.2 kV | Max. permissible operating voltage DC: 5.4/10.8 kV | AC test voltage: 11 kV

Technical Specifications
Rated Voltage 3.6/6 kV
Number of cores x cross section Conductor diameter max. mm Min. Height mm Max. Height mm Min. Width mm Max. Width mm Bending radius min. mm Weight kg/km Permissible tensile force max. N Conductor resistance at 20°C max.
3x35+4x25/4E +1×(6G62,5) 8.3 24.5 27.5 83.5 88.5 413 3700 1575 0.57
3x50+4x25/4E+1×(6G62,5) 9.8 23.9 25.9 79.1 84.1 389 3890 2250 0.39
3x70+4x35/4E+1×(6G62,5) 11.4 28.7 31.7 97.7 102.7 476 5590 3150 0.28
3x95+4x50/4E+1×(6G62,5) 13.3 30.6 33.6 105.3 110.3 504 6720 4275 0.21
