Korean Standard Rubber Sheathed Cable with Copper Conductor for Industrial Use 600V 0.6/1kV 3.3kV 3.6kV/6kV 6.6kV 6/10kV

Name: Korean Standard Rubber Sheathed Cable with Copper Conductor for Industrial Use 600V 061kV 33kV 36kV6kV 66kV 610kV
Brand: Minfeng
Price: 0.1 USD

Wholesale Korean Standard Rubber Sheathed Cable with Copper Conductor for Industrial Use 600V 0.6/1kV 3.3kV 3.6kV/6kV 6.6kV 6/10kV from china suppliers

Certification : ISO,CE,IEC,TUV,KEMA

Supply Ability : 100KM/Week

Cable Mark : Printing or Embossing

Insulation material : Rubber

Free Sample : Avaliable

Packaging Details : Wooden Drum

Sheath material : Rubber

Price : 0.1-5

Delivery Time : 5-8 Days

Brand Name : Minfeng

MOQ : 100m

Model Number : HTC-RP3

Payment Terms : L/C,T/T

Voltage : 600V 0.6/1kV 3.3kV 3.6kV/6kV 6.6kV 6/10kV

Place of Origin : China

Model : HTC-RP3

Contact Now

Korean Standard Rubber Cable HtcRP2 HtcRP3 HtcFP2 HtcFP3 Copper Conductor 600V 0.6/1kV 3.3kV 3.6kV/6kV 6.6kV 6/10kV

Product Overview

Korean Standard Rubber-sheathed Cable HTC-RP2 HTC-RP3 HTC-FP2 HTC-FP3 Copper Conductor 600V 0.6/1kV 3.3kV 3.6kV/6kV 6.6kV 6/10kV

Key Specifications

Rated Voltage	600V 0.6/1kV 3.3kV 3.6kV/6kV 6.6kV 6/10kV
Size	6-300mm²
Conductor Material	Copper
Insulation Material	Rubber
Jacket	Rubber
Application	Industrial
Type	Low Voltage
Place of Origin	Hebei, China
Model Number	HTC-RP3
Brand Name	Minfeng
Product Name	HTC-RP2 HTC-RP3 HTC-FP2 HTC-FP3

Application

A cable for movement is designed for reels in transportation machines, loading machines, and various industrial sites. It is used to supply power to and control movement equipment, requiring mechanical durability against impacts, friction, and bending, as well as chemical resistance including oil resistance, water resistance, and heat resistance.

Technical Specifications

Specification	Details
Rated Voltage	600V, 0.6/1kV, 3.3kV, 3.6kV/6kV, 6.6kV, 6/10kV, etc.
Type Designation	HTC-RC 2, FTC-RC 2, STC-RC 2, HVC-RP 3, etc.
Size	No. of cores X Conductor nominal area
Overall Diameter	If necessary, Specify max. overall diameter
Length	Total length, Unit length
Condition - Site	Steel works, Port, Power station, etc.
Condition - Machinery	Stacker, Reclaimer, Unloader, etc.
Max. Tension	Pulling tension
Movement	Distance, Speed, Time, etc.
Spec. of Reel	Dimensions, Torque, etc.

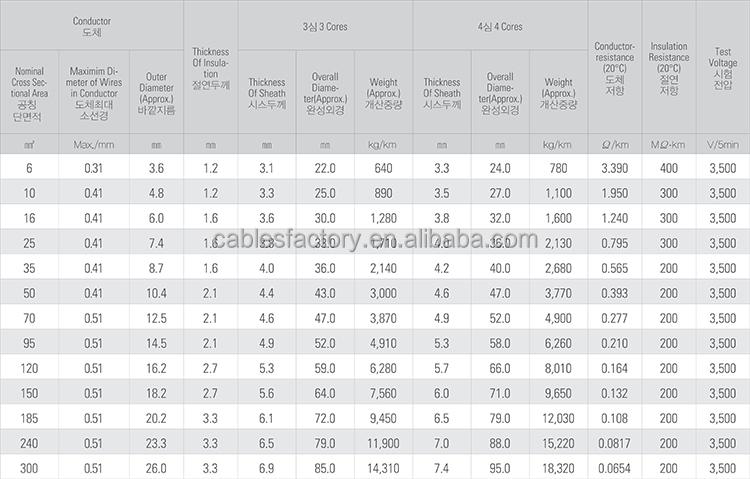

Product Images

Korean Standard Rubber Sheathed Cable with Copper Conductor for Industrial Use 600V 0.6/1kV 3.3kV 3.6kV/6kV 6.6kV 6/10kV

Korean Standard Rubber Sheathed Cable with Copper Conductor for Industrial Use 600V 0.6/1kV 3.3kV 3.6kV/6kV 6.6kV 6/10kV Images
